Impact of Clay Soil on Pipes in Caboolture

If you live in Caboolture, Morayfield, Upper Caboolture, or the Moreton Bay area and have observed wet patches, sinking areas, persistent blockages, or foundation cracks, you might be concerned that reactive clay soil is compromising your underground pipes.

The foundation in Caboolture primarily consists of reactive clay, which can swell when wet and shrink when dry, sometimes varying in volume by 20% or more. This ongoing fluctuation exerts significant pressure on underground pipes during wet periods, making them particularly vulnerable as the soil dries. Older clay sewer and galvanised water pipes are especially at risk. A camera inspection can help detect damage early, while pipe relining often provides an effective solution without the need to excavate your garden.

In Caboolture, your underground pipes face a continual struggle against the surrounding soil.

This persistent battle can result in severe pipe damage over time. By the time visible symptoms appear, the underlying issues may have been developing for a considerable duration.

How Do Cycles of Clay Soil Contribute to Pipe Damage?

There are four critical phases to consider: wet swelling (compression), dry shrinking (loss of support), the repetitive stress of these cycles, and the common drought-to-flood transitions seen in Southeast Queensland. Each cycle worsens existing cracks and misaligns joints.

• The wet phase: Heavy rainfall in Caboolture causes the clay to absorb moisture and expand. This expansion creates crushing pressure on pipes from all sides, potentially forcing joints together or pulling them apart. Rigid pipe materials are particularly susceptible to cracking under such intense pressure.
• The dry phase: When the rain stops and the clay dries, it contracts and pulls away from the pipes. This creates voids and gaps, leading to sagging, bending at joints, and the formation of bellies where water and sediment can accumulate.
• The repeat cycle: This process of expansion and contraction occurs repeatedly with changing weather—often dozens of times a year in Caboolture's climate. Each cycle increases stress on the pipes and gradually widens existing cracks.
• The drought-flood pattern: Southeast Queensland faces alternating dry spells and heavy wet seasons. Following an extended dry period, the clay shrinks significantly. When heavy rain arrives, the soil expands rapidly, placing pipes—which may be resting in loose, cracked ground—under sudden, extreme pressure.

Which Types of Pipes Are Most Susceptible to Damage?

Older clay sewer pipes (from properties built before the 1970s), galvanised steel water mains (from homes constructed before 1985), and concrete stormwater pipes are at the highest risk. Modern PVC pipes generally perform better, but inadequate backfill can still lead to joint separation. Copper pipes, while more flexible, can develop pinhole leaks at connection points due to recurring stress.

• Clay pipes: Clay sewer pipes, especially from homes built prior to the 1970s in Caboolture, are among the first to fail. Their brittle nature and heavy construction, combined with mortar joints, make them prone to cracking.
• Galvanised steel pipes: Used for water supply in homes constructed before 1985, these pipes are already compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems can manage compression reasonably well, they frequently crack at joints during ground movement, allowing roots to intrude through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. significant ground movement can still result in joint separation. Poor backfill during installation can increase the vulnerability of PVC pipes.
• Copper pipes: Utilised in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Signs Indicate Damage to Underground Pipes?

Be alert for wet spots during dry weather, sinkholes or soft areas, slow drainage, unpleasant odours in your yard, unusually lush patches of grass, trees heavily rooting in one area, and cracks in your slab. If you notice two or more of these signs, arrange for a camera inspection without delay.

• Wet patches in the yard during dry weather—this may indicate water leaking from a damaged pipe and saturating the soil.
• Sinkholes or soft spots—these develop when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or recurring blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at the damaged locations.
• Unpleasant smells in your yard—a cracked sewer pipe may leak sewage into the surrounding soil.

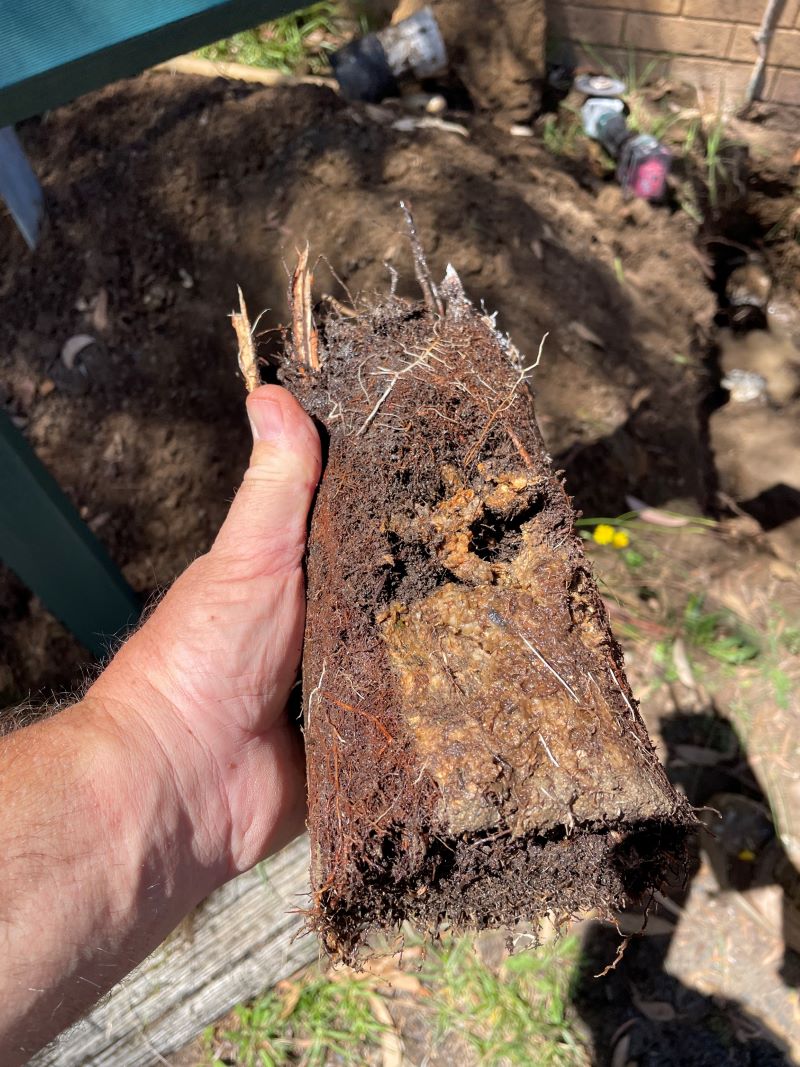

• Tree roots thriving in a specific area—trees often detect moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home's foundations.

How Do We Detect Pipe Damage?

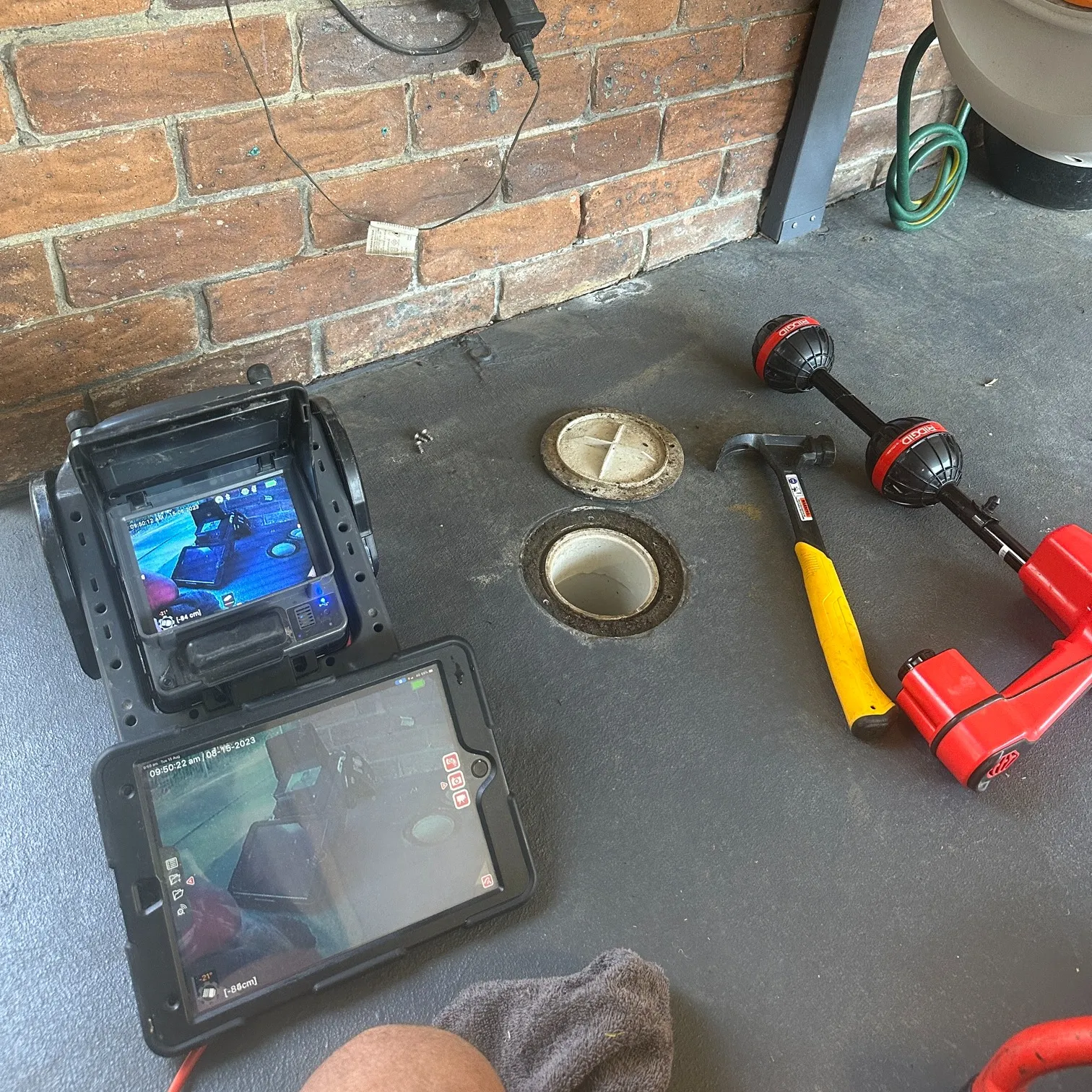

We utilise CCTV drain cameras to conduct real-time visual inspections of sewer and stormwater pipes, identifying cracks, root intrusions, displaced joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection methods, alongside a comprehensive property assessment to anticipate potential future damage.

• CCTV drain camera inspection: A camera navigates through the pipe, providing a live visual of its condition. We can uncover cracks, breaks, root intrusions, displaced joints, sediment accumulation, and areas that have collapsed.
• Leak detection: To locate leaks in water supply pipes, we utilise advanced acoustic and thermal detection tools, enabling us to pinpoint issues without excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and anticipate where issues may arise next.

What Solutions Are Available for Pipe Damage?

Hydro jetting is employed to clear immediate blockages. For cracked or root-invaded pipes, pipe relining offers the most effective solution—this process does not necessitate excavation. Installing French and spoon drains can help alleviate future ground movement pressure. Full excavation is only required in cases of complete pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes to restore proper flow, often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to mitigate future issues caused by ground movement.

Why Is Prompt Action Essential to Prevent Pipe Collapse?

Damage to underground pipes in clay soil worsens over time. The situation does not stabilise; it deteriorates further. A minor crack today could escalate to complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately obstructing the pipe entirely.

The most cost-effective repairs occur when addressed early. A camera inspection reveals the precise conditions underground, allowing you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While you can reduce the risk of damage, complete prevention is not feasible. Regularly watering the area surrounding your home during dry spells can help lessen the shrinkage cycle. Effective tree management can reduce root pressure on pipes. Proper drainage systems also assist in decreasing soil saturation. Consistent monitoring of pipes in reactive clay soil is essential—camera inspections can identify issues early.

What Is the Cost of Repairing Pipes Damaged by Clay Soil?

Repair costs vary depending on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at around $350. Pipe relining for a damaged section typically begins at $4,000, whereas full excavation and replacement for a collapsed pipe may exceed $8,000, influenced by factors such as depth, length, and access. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most instances, yes. A relined pipe has a smooth, jointless interior that actually facilitates better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Identify If My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to observe include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Not Read This Article?

• If you are located outside the Moreton Bay region—different soil conditions necessitate different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you plan to DIY the plumbing work—underground sanitary plumbing must be conducted by a licensed plumber in Queensland.
• If you are seeking the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t commence excavation without first conducting a camera inspection.
