Dedicated Circuits for Heavy Tool Power Solutions in Workshops

If you own a shed on a rural property and are contemplating converting it into a fully operational workshop, it is essential to prioritise the electrical setup. Utilising a MIG welder, air compressor, and table saw on the same electrical circuit as your home can result in serious complications, including frequent tripped breakers, flickering lights, and potentially dangerous overload scenarios that could compromise both safety and productivity.

This detailed guide outlines the key components necessary for wiring a dependable workshop in the rural regions of the Mid North Coast. We will delve into the significance of dedicated circuits, sub-boards, and the advantages of three-phase power when operating more substantial machinery. If your requirements are limited to basic power needs—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically addresses workshops that demand considerable power for intensive tasks.

Recognise the Significance of Dedicated Circuits for Workshop Power

Many homes operate multiple power outlets on shared circuits, which is usually adequate for low-power devices like kettles and televisions. difficulties arise when attempting to run a 32-amp MIG welder and an air compressor simultaneously. This can lead to serious issues if not managed properly.

Consider the potential consequences of connecting heavy machinery to household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, worse, cause the wiring to overheat before the breaker can respond.
• Voltage drops — Extended cable runs from the main board to the shed can cause voltage sag, which results in your tools operating at higher temperatures, performing inefficiently, and deteriorating more quickly.
• Power disruptions at home — Your partner may experience a power outage in the kitchen due to the compressor’s startup, often leading to unwanted discussions.
• Heightened fire risks — Overloaded wiring within walls and cable runs is a leading cause of electrical fires in rural settings.

Implementing dedicated circuits can effectively address these challenges. Each heavy tool should have its own dedicated circuit, appropriately sized for its load, along with individual breaker protection. This configuration ensures that nothing is shared, thus avoiding overload issues.

Assess the Power Requirements of Common Workshop Equipment

Before your electrician can devise an effective circuit layout, it is crucial to understand the power requirements of your tools. Below is a breakdown of the typical power consumption for common workshop equipment:

• MIG welder — Requires between 15A and 32A, depending on the model. Larger 240V welders typically operate at the upper end of this range. Three-phase units will have different power needs (more on that later).
• Air compressor — Consumes approximately 10A to 15A. The startup surge can be significant, with compressor motors often drawing three to four times their running current for a brief period when starting up.
• Table saw — Generally uses between 10A and 15A for a quality cabinet saw. Less expensive contractor saws may consume less power, but you are likely not seeking a budget-friendly option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually being on the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, which means it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus requiring a dedicated circuit.

When you total the power consumption, it becomes clear that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, underscoring the necessity for a comprehensive electrical plan.

Choose the Right Circuit Breaker Size and Incorporate RCD Protection

Every circuit in your workshop necessitates a breaker that corresponds with the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Essential for welders, plasma cutters, and other heavy single-phase machinery that requires substantial power.
• Three-phase breakers — Should be sized according to the specific requirements of the equipment (details below).

RCD protection is vital. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement aims to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture elevate the likelihood of earth faults. RCDs swiftly disconnect power if there is a current leak to earth, which can differentiate between a minor shock and a serious injury.

Typically, your electrician will utilise a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that combine both functionalities. RCBOs are particularly beneficial in workshop settings because a fault in one circuit does not disrupt power to others, leading to a more reliable electrical system.

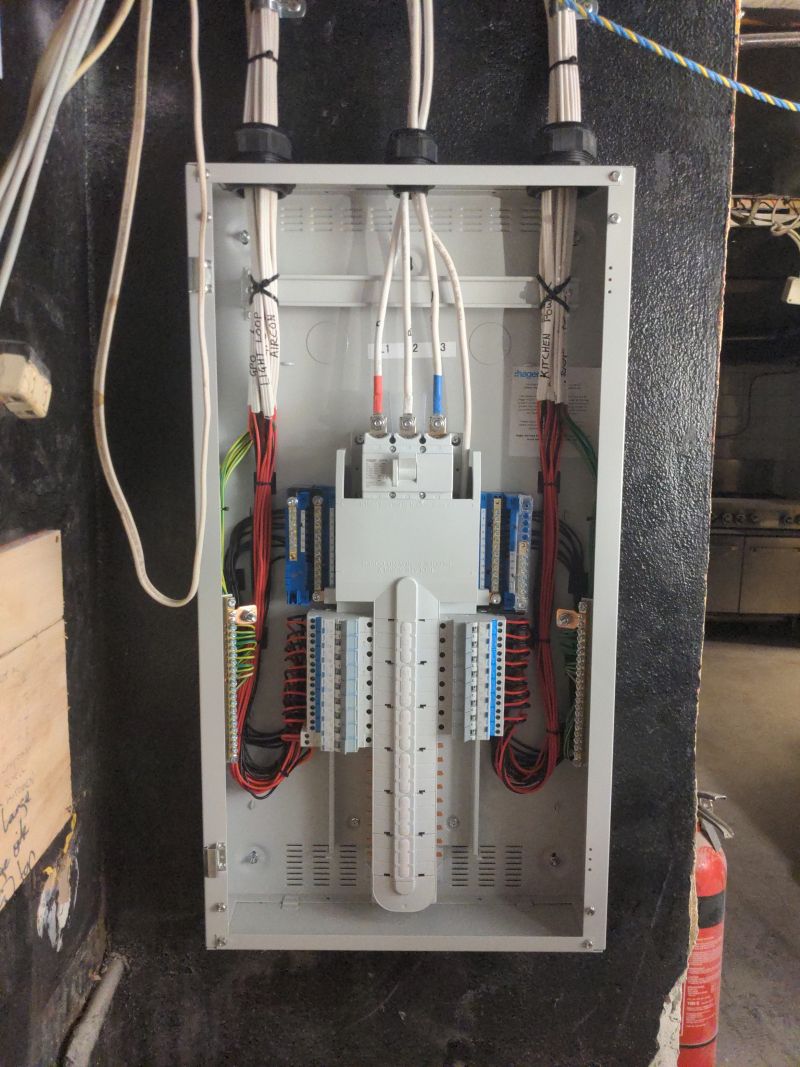

Install a Dedicated Sub-Board to Accommodate Your Workshop's Electrical Demands

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop presents a more efficient solution. Below are the advantages:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This configuration reduces voltage drop and lowers cable expenses.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to return to the house to reset it, enhancing efficiency.
• Future expansion — A properly sized sub-board enables the addition of more circuits in the future, facilitating the incorporation of new tools later on.
• Isolation capability — You can shut off all workshop power from a single main switch without influencing the house's electricity, which is a crucial safety feature.

If your house switchboard is outdated or operating at full capacity, an upgrade may be necessary to effectively support the workshop sub-board. Older ceramic fuse boards are unlikely to safely handle the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total anticipated load, plus a buffer for future additions to ensure long-term efficiency.

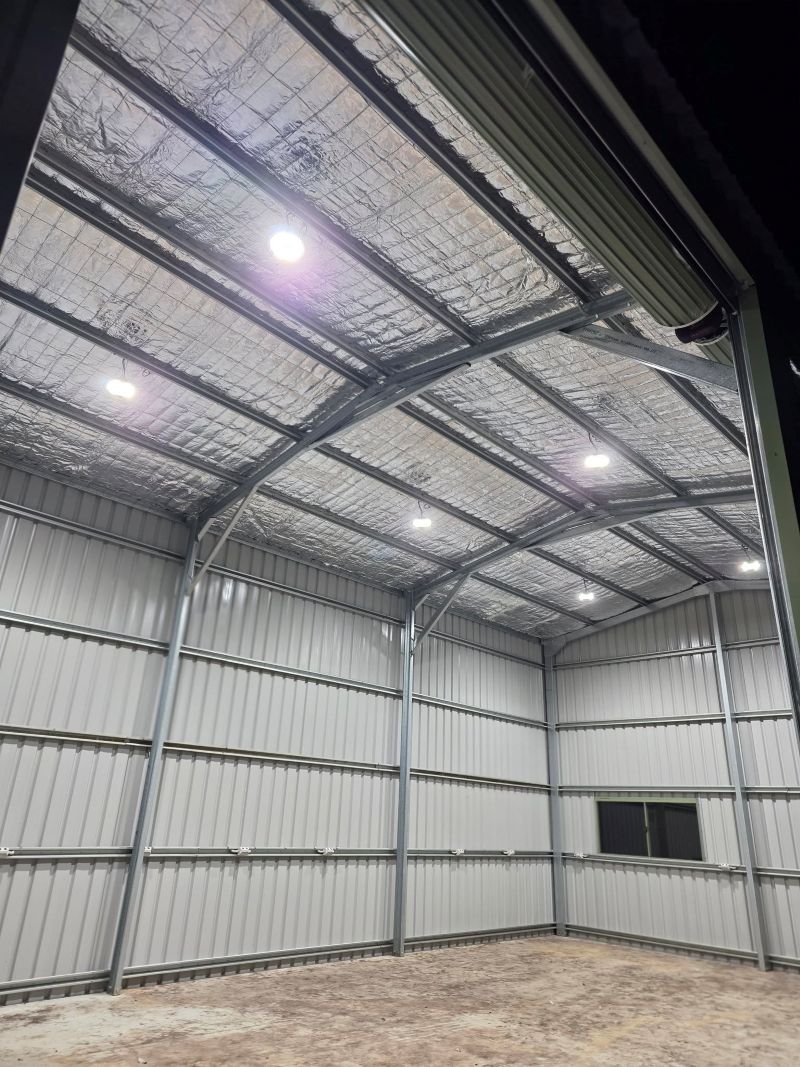

Create an Effective Lighting Strategy for Your Workshop

Sufficient lighting is crucial for safety in your workshop. Clear visibility is essential, particularly when working with sharp blades and hot materials. Below are vital lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal shavings. Opt for IP-rated fittings that are both dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is crucial for precision work, enhancing productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw presents a significant safety risk.

We have extensive experience with lighting layouts in commercial environments. Our team can assist you in developing a workshop lighting plan that greatly enhances your working environment while adhering to safety standards.

Plan for Efficient Ventilation and Dust Extraction Circuits

When engaged in woodworking or welding, ensuring proper ventilation is just as vital as having adequate electrical power. Dust extraction systems and exhaust fans necessitate their dedicated circuits for several important reasons:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise both safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, akin to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. Should you be using a cyclone-style dust collection system, it may require a 20A circuit depending on motor specifications.

Explore the Benefits of Three-Phase Power for Heavy Equipment

When you engage in intensive metalworking or operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its capacity limits. Three-phase power provides several distinct advantages:

• Increased power capacity — Three-phase motors operate more efficiently and provide greater power without the excessive startup surges commonly linked with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically require three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors run more smoothly and cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on its availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further information, see our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will necessitate the installation of a three-phase switchboard fitted with appropriately rated breakers and an effective earthing system to guarantee safety and compliance.

Protect Your Equipment with Surge Protection

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges each time a large motor starts or stops. Coupled with the voltage instabilities commonly found in rural power lines, your equipment is at considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to the expenses involved in replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common in the Mid North Coast—we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties relying on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Consider Additional Features for Your Workshop Setup

Here are several additional features to incorporate into your workshop wiring from the outset:

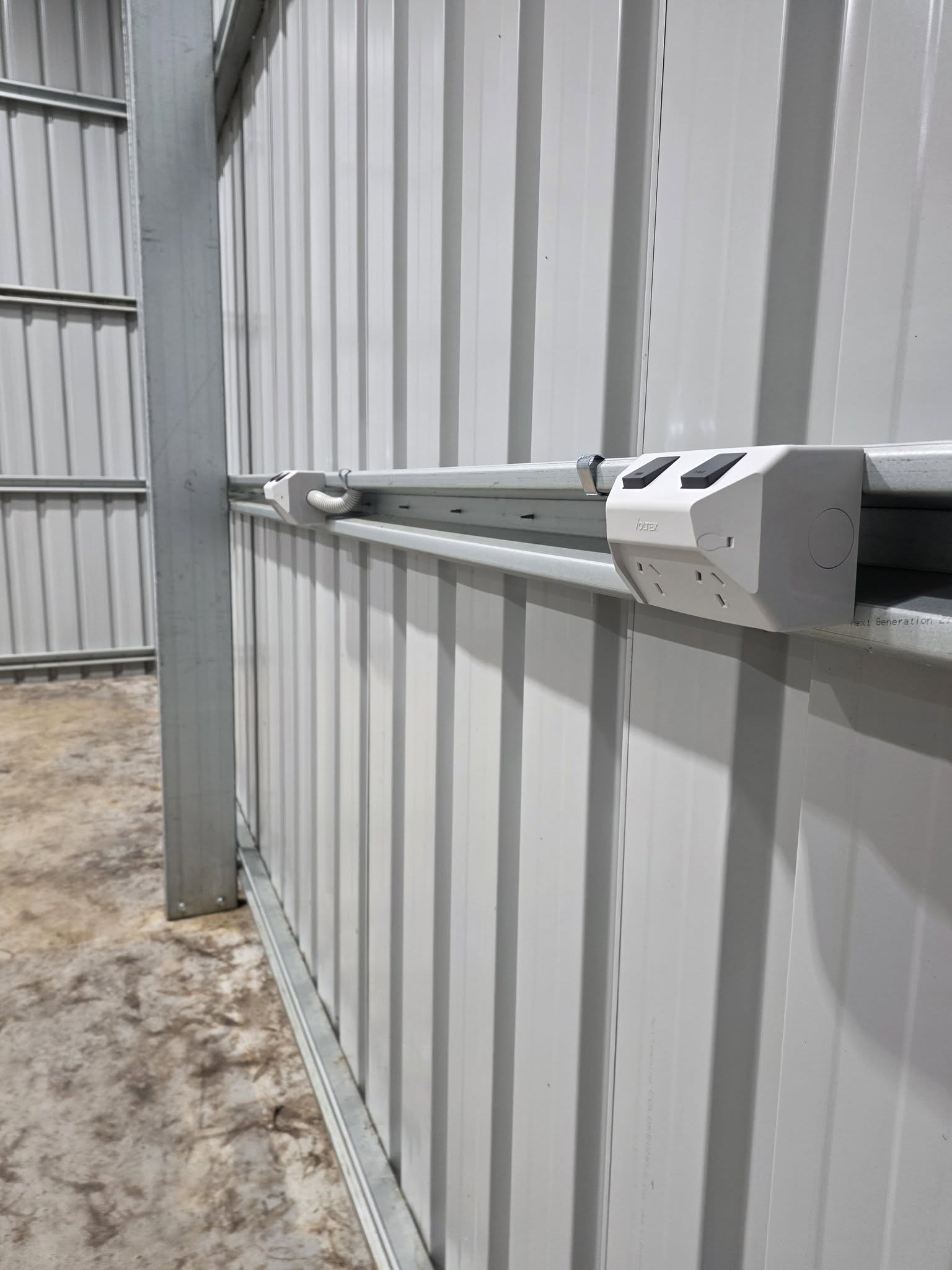

• Ample power points — Install more power points and switches than you believe you will require. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and ensure outlets are conveniently positioned near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. Running cables during the initial fit-out is significantly easier than after the walls are completed.
• External lighting — Include floodlights outside the workshop to enable access during early mornings and late evenings, particularly in rural areas lacking sufficient street lighting.
• EV or equipment charging — If you utilise electric equipment (such as battery-operated tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Costs of Your Workshop Electrical Setup

Cost estimates will vary based on the size of the workshop, the number of circuits required, and whether three-phase power is needed. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the necessity for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment needs—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is a crucial point to emphasise. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to considerable fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have serious consequences.

Addressing Your Frequently Asked Questions

Can I Operate My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. Any larger units necessitate a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Required in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spare circuits for future additions. We tailor the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Consult our complete guide on Do I Need Three-Phase Power on My Property? to ascertain if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it comprises an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will evaluate this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
